sComm – Bridging the Gap Between the Deaf and Hearing



HUMAN INTERACTION – ESSENCE OF LIFE

Bridging the Gap Between the Deaf and Hearing

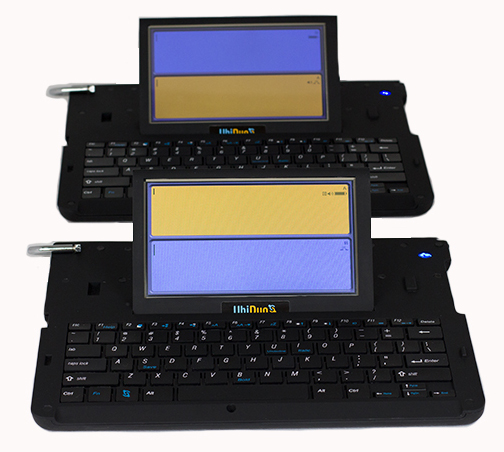

 2 Wireless

sComm’s latest UbiDuo model continues to advance the state of the art in face-to-face communication technology with a sleek package that includes a color touch screen and sComm’s patented hinge system. At half the size of the original UbiDuo, the UbiDuo 2 is the world’s foremost independent communication solution for people who are deaf, hard of hearing or hearing.

The unique patented hinge technology holds the two halves securely in place for easy transportation, and its 8-hour battery life ensures you won’t be left stranded in the middle of those important conversations.

Try the new UbiDuo whenever you need a solution to facilitate face-to-face communication between deaf/hard-of-hearing and hearing people. This revolutionary device will help to eliminate bluffing, frustration and Communiphobia, as well as promote communication equality. Use it to empower people to share their thoughts and emotions seamlessly in real time just as in a normal conversation.

The Standard Wireless model of the UbiDuo connects each half with a built-in proprietary networking protocol that has a range of up to 300 feet.

Hardware

  • Standard wireless network connection – 2.4GHz Zigbee wireless transceiver

  • NXP ARM 9 CPU

  • 128MB total storage (28MB reserved for operating system, 100MB for user storage)

  • 7-inch diagonal color touch screen

  • 8-hour lithium-polymer battery pack

  • 4-pound total weight (2 lbs per half)

  • Micro USB port for charging

  • USB type A port for connecting flash storage

  • HDMI port for connecting a TV or projector

  • Patented hinge technology

  • Kensington anti-theft slots on each half

Software

  • UbiOS 1

  • Real-time split screen interface

  • Customizable fonts (12 point to 72 point)

  • Customizable text and background colors

  • Password protection on saved conversations

  • Password protection on configuration settings

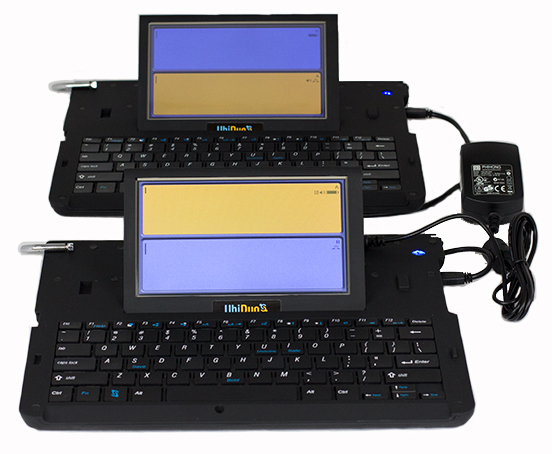

 2 Wired

When our clients spoke, we listened carefully.  They asked for a hard-wired UbiDuo model that would not risk interference with other wireless signals and that could be used for communication even in secure areas where wireless connections are forbidden.  The UbiDuo 2 Wired has no wireless capability, making it ideal for use in some of the most sensitive areas where radio waves fear to tread.

You’ll get the same benefits of the wireless package: empowerment; the promotion of communication equality; seamless, real-time communication; and the elimination of bluffing, frustration, and Communiphobia. This high-tech device has all of the bells and whistles of the wireless version plus one: the wired connection between the two halves.

Hardware

  • Standard wired network connection

  • NXP ARM 9 CPU

  • 128MB total storage (28MB reserved for operating system, 100MB for user storage)

  • 7-inch diagonal color touch screen

  • 8-hour lithium-polymer battery pack

  • 4-pound total weight (2 lbs per half)

  • Micro USB port for charging

  • USB type A port for connecting flash storage

  • HDMI port for connecting a TV or projector

  • Patented hinge technology

  • Kensington anti-theft slots on each half

Software

  • UbiOS 1

  • Real-time split screen interface

  • Customizable fonts (12 point to 72 point)

  • Customizable text and background colors

  • Password protection on saved conversations

  • Password protection on configuration settings

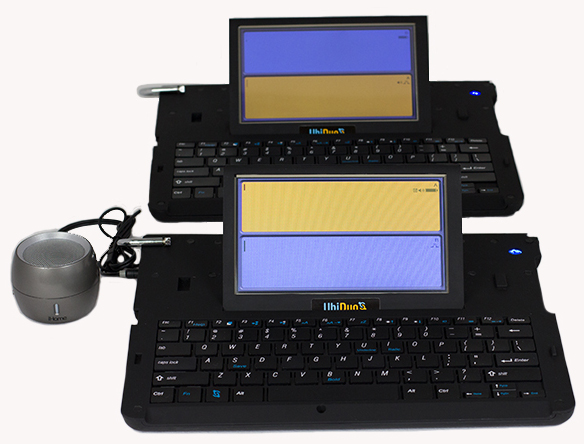

 2 Text to Speech 1

The groundbreaking UbiDuo 2 TTS 1 continues sComm’s stellar record of advancing face-to-face communication technology with solutions that meet a myriad of unique needs.  This particular device not only brings sComm’s signature real-time split-screen text communication features to the table; it enhances communication even more by accompanying that text with a voice.  The single included text to speech module and speaker allows one of the two parties to provide a spoken component to the conversation.

Try the only and new UbiDuo 2 TTS 1 in the world whenever you need a solution to facilitate face-to-face communication between deaf, hard-of-hearing, late deafened, and hearing people. This revolutionary device with Text to Speech will help to eliminate bluffing, frustration and communication barriers, as well as promote communication equality. Use it to empower people to share their thoughts and emotions seamlessly in real time text and hear each other just as in a normal conversation.

The unique patented hinge technology holds the two halves securely in place for easy transportation, and its 8-hour battery life ensures you won’t be left stranded in the middle of those important conversations.

The only UbiDuo 2 with real time text and dual text to speech connects each half with a built-in proprietary networking protocol that has a range of up to 300 feet.   The wireless system does not depend on Wi-Fi or the internet.   You can use it in the middle of the ocean or at the top of a mountain.

Hardware

  • Standard wireless network connection – 2.4GHz Zigbee wireless transceiver

  • NXP ARM 9 CPU

  • 128MB total storage (28MB reserved for operating system, 100MB for user storage)

  • 7-inch diagonal color touch screen

  • 8-hour lithium-polymer battery pack

  • 4-pound total weight (2 lbs per half)

  • Micro USB port for charging

  • USB type A port for connecting flash storage

  • HDMI port for connecting a TV or projector

  • Patented hinge technology

  • Kensington anti-theft slots on each half

Text to Speech (TTS)

  • Embedded hardware text-to-speech solution

  • Industry-standard DECtalk text-to-speech synthesizer engine (5.0.E1)

  • up to nine pre-defined voices to choose from, male, female, child

  • variable speech rate and pitch

  • Industry-standard 3.5mm headphone jack

  • Internal low-powered, 2 Watt mono amplifier designed for typical headphones or externally powered speakers.

  • Includes self-powered, rechargeable speaker

  • 3.5 mm line-in audio patch cord

  • Switchable speech mode enables to speak one word at a time, a phrase at a time or complete sentence.

  • Built in volume control

  • Highlight words or phrase as being spoken

  • Switch between speaking the words as being typed or speaking the words as being received on the device

Software

  • UbiOS 1

  • Real-time split screen interface

  • Customizable fonts (12 point to 72 point)

  • Customizable text and background colors

  • Save conversation for later referral

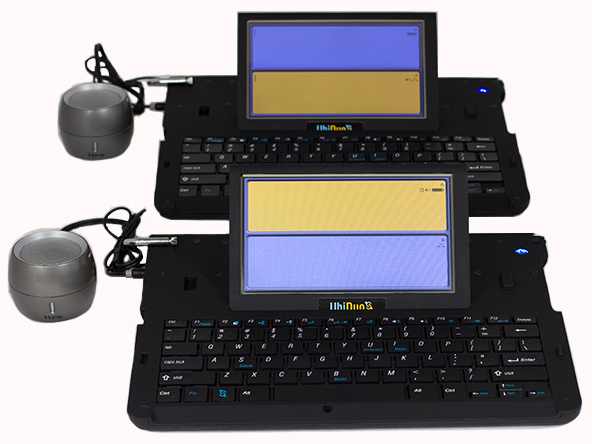

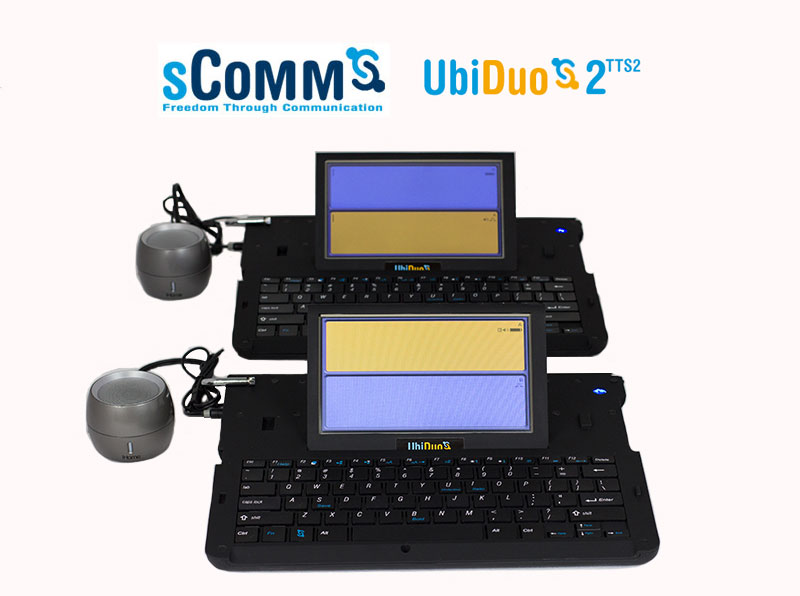

 2 Text to Speech 2

Like the UbiDuo 2 TTS 1, the TTS 2 model pairs the text communication feature of the base UbiDuo model with a voice to provide spoken communication along with the written text.  The TTS 2 includes two text to speech modules and speakers to allow both parties to voice their thoughts to each other.

Try the only and new UbiDuo 2 TTS in the world whenever you need a solution to facilitate face-to-face communication between deaf, hard-of-hearing, late deafened, and hearing people. This revolutionary device with Text to Speech will help to eliminate bluffing, frustration and communication barriers, as well as promote communication equality. Use it to empower people to share their thoughts and emotions seamlessly in real time text and hear each other just as in a normal conversation.

The unique patented hinge technology holds the two halves securely in place for easy transportation, and its 8-hour battery life ensures you won’t be left stranded in the middle of those important conversations.

The only UbiDuo 2 with real time text and dual text to speech connects each half via wire only which the built-in proprietary wireless networking protocol is not a part of the device. This version is used ideally for places that have high security and do not allow devices that have built in wireless systems.

Hardware

  • Wired only

  • NXP ARM 9 CPU

  • 128MB total storage (28MB reserved for operating system, 100MB for user storage)

  • 7-inch diagonal color touch screen

  • 8-hour lithium-polymer battery pack

  • 4-pound total weight (2 lbs per half)

  • Micro USB port for charging

  • USB type A port for connecting flash storage

  • HDMI port for connecting a TV or projector

  • Patented hinge technology

  • Kensington anti-theft slots on each half

Text to Speech (TTS)

  • Embedded hardware text-to-speech solution

  • Industry-standard DECtalk text-to-speech synthesizer engine (5.0.E1)

  • up to nine pre-defined voices to choose from, male, female, child

  • variable speech rate and pitch

  • Industry-standard 3.5mm headphone jack

  • Internal low-powered, 2 Watt mono amplifier designed for typical headphones or externally powered speakers.

  • Includes self-powered, rechargeable speaker

  • 3.5 mm line-in audio patch cord

  • Switchable speech mode enables to speak one word at a time, a phrase at a time or complete sentence.

  • Built in volume control

  • Highlight words or phrase as being spoken

  • Switch between speaking the words as being typed or speaking the words as being received on the device

  • Built in Speakers

Software

  • UbiOS 1

  • Real-time split screen interface

  • Customizable fonts (12 point to 72 point)

  • Customizable text and background colors

  • Save conversation for later referral

Click here for more information.
